Bredent attachments, Security Lock (Tool Kit Patented threaded units which do not loosen or break.

HM-Centering drill 1.0
Order No. 33000815

Diatit Multidrill 1.0
Order No. 33000610

HM-Centering drill 1.4
Order No. 33000660

Diatit Multidrill 1.4
Order No. 33000790

HM-Centering drill 1.4
Order No. 33000660

Diatit Multidrill 1.8
Order No. 33000800

a
Assortment available in 1.0, 1.4 or 1.8
sizes.43007290, Size 1.0
43007291, Size 1.4
43007292, Size 1.8
Each assortment contains:
2 threaded rods, titanium
2 matrix sleeves HL
(cast on/solderable)
2 Fixing screws
1 Diatit Multidrill
1 HM-Centering Drill
1 Screw Driver

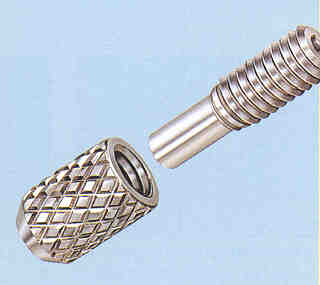

Since the non-threaded section is in the inner coping, no micro-movements can be transferred. This guarantees that the threaded rod will not loose inadvertently.

  • The different sizes can be used for a wide range of applications with implants and bridges etc..
  • In this case a superstructure is to be retained with a screw. The abutment should be waxed up using standard procedures.
  • Once the abutment has been cast, it should be milled and polished.
  • A centering drill is used to create a purchase point in the correct position.
  • The correct size of Multidrill is used to drill a hole at the correct angle for the threaded rod. It is absolutely essential that Bredent milling/drilling oil is used.
  • Screw the threaded rod into the threaded sleeve. Both the pin and the hexagonal socket can be reduced as required.
  • Coat the threaded rod and sleeve with Pi-Ku-Plast, Order No, 54000176.
  • Pi-Ku-Plast guarantees optimum strength for continued processing.
  • Screw a retention screw coated with colloidal graphite into the threaded sleeve to retain it in the investment material.
