Dent-Line - The VKS-OC-RS System

dent-line of canada
bredent attachment, vks-oc-rs f 2.2 mm for
3i, Steri-Oss, hex-lock and Replace
for resilient and rigid females


vks-oc-rs f 2.2. mm Abutment f 4 mm, distance height 2 mm 46000042	vks-oc-rs f 2.2. mm Abutment f 5 mm, distance height 2 mm 46000052	vks-oc-rs f 2.2. mm Abutment f 6 mm, distance height 2 mm 46000062	vks-oc-rs f 2.2. mm Implant Analogue f 4 mm 46000004

vks-oc-rs f 2.2. mm Abutment f 4 mm, distance height 4 mm 46000044	vks-oc-rs f 2.2. mm Abutment f 5 mm, distance height 4 mm 46000054	vks-oc-rs f 2.2. mm Abutment f 6 mm, distance height 4 mm 46000064	vks-oc-rs f 2.2. mm Implant Analogue f 5 mm 46000005

vks-oc-rs f 2.2. mm Abutment f 4 mm, distance height 6 mm 46000046	vks-oc-rs f 2.2. mm Abutment f 5 mm, distance height 6 mm 46000056	vks-oc-rs f 2.2. mm Abutment f 6 mm, distance height 6 mm 46000066	vks-oc-rs f 2.2. mm Implant Analogue f 6 mm 46000006

Screwdriver is elbow, 1 piece 46000010	Screwdriver is manual, short, 1 piece 46000011	Angle measuring device 1 piece 46000100	vks-oc-rs f 2.2. mm Axle Abutment, 2 pieces 46000102

Bredent Vario Snap vks-oc-rs

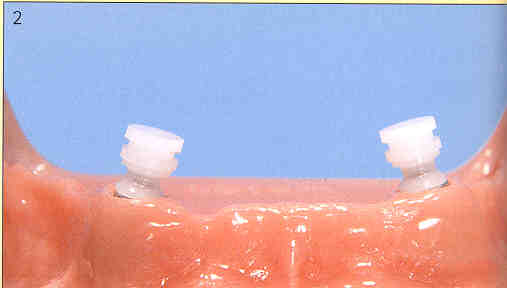

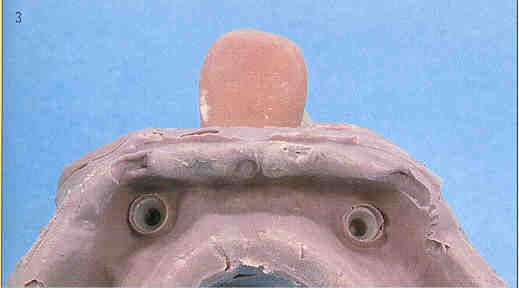

After successful osseointegration of the implant, the mucous membrane is opened and the suitable vks-oc abutment is screwed in. The torque must be limited to 30 Ncm by using a vks-oc screwdriver. Abutments in the distance heights of 2, 4 and 6 mm are available. Distance sleeves are not required. The stud abutments can also be used as gingiva former. Prior to taking the impression, place the transfer matrixes onto the stud abutments. The transfer matrices are now in the total impression. Retention grooves ensure the firm position of the transfer matrices in the impression material.

Prior to the fabrication of the model, laboratory implants are inserted into the transfer matrices. This way precise transfer of the position of the implants is guaranteed.

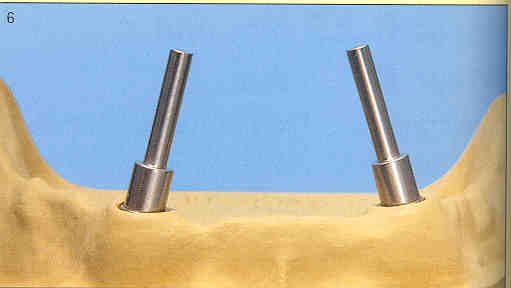

The model precisely shows the position of the implants. Normally the implants have not been inserted in an entirely parallel position to each other so that divergence or convergences between several stud abutments result. The vks-oc system accepts maximum deviations of 15° to the planned angle of insertion. To determine from the vertical axle, axle abutments are placed onto the abutment analogue.
A special angle measuring device represents the range of tolerance of the vks-oc system. In this example the deviation of the implants lies within the range of tolerance.

Resilient Resilient Rigid
vks-oc Abutments can be supplied with rigid or resilient matrixes. matrixes can be integrated into a chrome cobalt framework or an acrylic denture.


After successful osseointegration of the implant, the mucous membrane is opened and the suitable vks-oc abutment is screwed in. The torque must be limited to 30 Ncm by using a vks-oc screwdriver.	Abutments in the distance heights of 2, 4 and 6 mm are available. Distance sleeves are not required. The stud abutments can also be used as gingiva former. Prior to taking the impression, place the transfer matrixes onto the stud abutments.	The transfer matrices are now in the total impression. Retention grooves ensure the firm position of the transfer matrices in the impression material.	Prior to the fabrication of the model, laboratory implants are inserted into the transfer matrices. This way precise transfer of the position of the implants is guaranteed.

The model precisely shows the position of the implants. Normally the implants have not been inserted in an entirely parallel position to each other so that divergence or convergences between several stud abutments result.	The vks-oc system accepts maximum deviations of 15° to the planned angle of insertion. To determine from the vertical axle, axle abutments are placed onto the abutment analogue.	A special angle measuring device represents the range of tolerance of the vks-oc system. In this example the deviation of the implants lies within the range of tolerance.	Resilient Resilient Rigid vks-oc Abutments can be supplied with rigid or resilient matrixes. matrixes can be integrated into a chrome cobalt framework or an acrylic denture.
